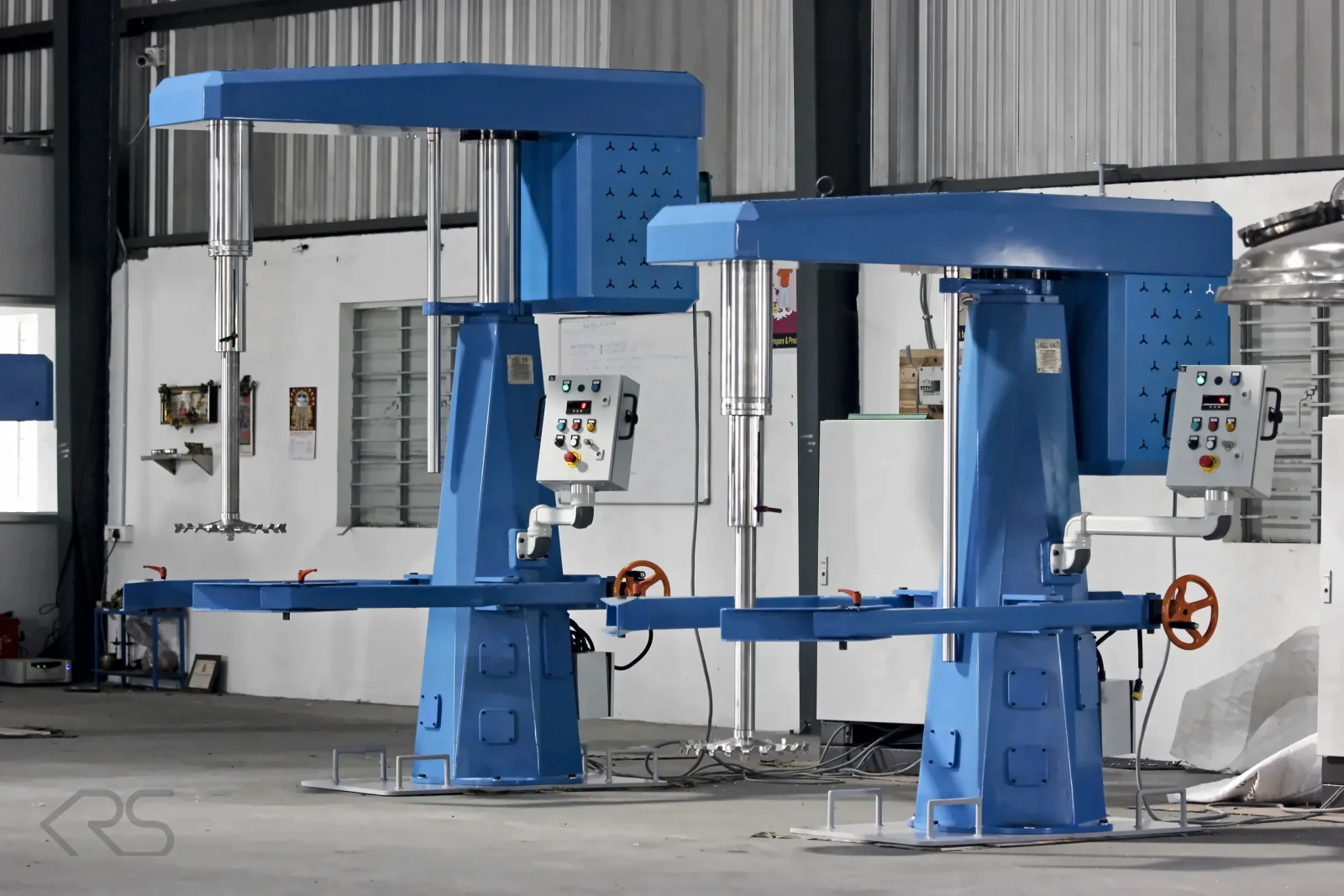

KRS DISPERMAHLTECHNIK High Speed Dispersers in the KRS workshop

PRODUCTS – HIGH SPEED DISPERSERS

High Speed Disperser Manufacturer in India

KRS DISPERMAHLTECHNIK designs and manufactures high speed dispersers in Coimbatore for wetting, pre-dispersing and mixing powders and pigments into paints, inks, coatings and chemical formulations.

OVERVIEW

What is a high speed disperser?

A high speed disperser is the standard machine for bringing solids into a liquid: pigments and fillers into paint, ink or coating bases, and powders into chemical formulations. In paint production it is the paint dispersion machine for the first dispersion stage, before the product goes on to a bead mill for fine grinding – or as the complete process where no further grinding is needed.

High Speed Disperser Manufacturer in India

KRS DISPERMAHLTECHNIK is a High Speed Disperser Manufacturer in India, offering industrial dispersing equipment for paints, printing inks, pigments, coatings, and specialty chemical formulations. Our machines are designed to support efficient mixing, powder incorporation, and dispersion in a wide range of industrial applications.

High speed dispersers play an important role in manufacturing processes where solid ingredients must be incorporated into liquid media. They help manufacturers achieve consistent mixing, improve processing efficiency, and prepare materials for subsequent production stages. The selection of a suitable disperser depends on the formulation, batch size, material viscosity, and required dispersion quality.

How Does a High Speed Disperser Work?

A high speed disperser consists of a motor-driven shaft fitted with a disperser blade that rotates inside a mixing vessel. During operation, the blade creates circulation and shear forces within the material.

First, the operator introduces the liquid and other ingredients into a suitable vessel. The disperser blade is then positioned at the required depth and operated at an appropriate speed. As the blade rotates, it draws material toward its working zone and circulates it throughout the vessel.

This action helps incorporate powders into liquids, wet pigment particles, and break down agglomerates. The operator can adjust the processing speed and duration according to the formulation and production requirements. Proper blade selection, vessel geometry, and operating conditions are important for achieving the desired results.

Applications of High Speed Dispersers

KRS High Speed Dispersers are suitable for a variety of industrial mixing and dispersion applications.

  • Paints and coatings: Incorporate pigments, fillers, resins, and other ingredients into suitable formulations.

  • Printing inks: Support the preparation and dispersion of ink ingredients during manufacturing.

  • Pigment processing: Help wet and disperse pigment powders in compatible liquid systems.

  • Specialty chemicals: Process suitable chemical formulations that require controlled mixing and dispersion.

  • Industrial formulations: Support batch preparation and premixing operations in different manufacturing environments.

The final application suitability depends on the material properties, formulation requirements, and machine configuration.

Key Features of KRS High Speed Dispersers

Our industrial dispersing equipment can be configured to meet different production requirements. Depending on the selected model, important features may include:

  • High-speed disperser blade: Generates circulation and shear to support powder incorporation and dispersion.

  • Powder incorporation capability: Helps introduce suitable solid ingredients into liquid formulations.

  • Adjustable operating conditions: Enables operators to select suitable processing parameters for different materials.

  • Industrial-duty construction: Designed to support demanding manufacturing environments.

  • Application-specific configurations: Allows equipment selection according to batch size, formulation, and process requirements.

The availability of specific features depends on the selected machine model and its technical specification.

How to Select the Right High Speed Disperser

Choosing the right high speed disperser is essential for achieving reliable production results. Manufacturers should consider several factors before selecting equipment.

Batch capacity: Determine the working volume required for your production process and select a suitable vessel and machine configuration.

Material viscosity: Consider the viscosity of the formulation during processing, as it affects circulation, power requirements, and dispersion performance.

Motor power and speed: Select an appropriate motor and speed range based on the material characteristics and processing objectives.

Disperser blade and vessel design: Blade diameter, vessel dimensions, and blade positioning influence circulation and shear within the material.

Production requirements: Evaluate batch frequency, operating conditions, cleaning requirements, and integration with existing production equipment.

Discussing these parameters with an equipment manufacturer helps identify a suitable configuration for your application.

Understanding High-Speed Dispersion

High-speed dispersion involves the controlled application of mechanical energy to incorporate powders into liquids and break down particle agglomerates. Blade tip speed, vortex formation, material viscosity, and mixing conditions influence dispersion performance. Understanding these factors helps manufacturers select suitable equipment for paints, printing inks, pigments, and coatings.

For additional technical information about high-speed dispersion principles, blade selection and operating conditions, refer to this industry guide published by PCI Magazine: A Practical Guide to High-Speed Dispersion.

High Speed Disperser Manufacturer for Industrial Applications

KRS DISPERMAHLTECHNIK serves industrial customers looking for dispersing equipment for paint manufacturing, printing inks, coatings, pigments, and suitable chemical formulations. We focus on understanding application requirements and helping customers identify equipment configurations that match their production processes.

Whether you are setting up a new production line or evaluating equipment for an existing facility, selecting the right disperser begins with understanding your material, batch size, and required processing results.

Looking for a High Speed Disperser Manufacturer in India? Contact KRS DISPERMAHLTECHNIK to discuss your application requirements and identify a suitable industrial dispersing solution.



Visit our KRS DISPERMAHLTECHNIK website to learn more about our industrial mixing and dispersion equipment.

Request a Quote

HOW IT WORKS

How a high speed disperser works

Vortex

A toothed disperser disc on a vertical shaft rotates at high speed inside the vessel and draws the product down into a vortex.

Shear

Intense shear at the edge of the disc breaks up agglomerates and wets the solids.

Distribution

The circulating flow distributes the solids evenly through the batch.

CONSTRUCTION

Machine construction and key features

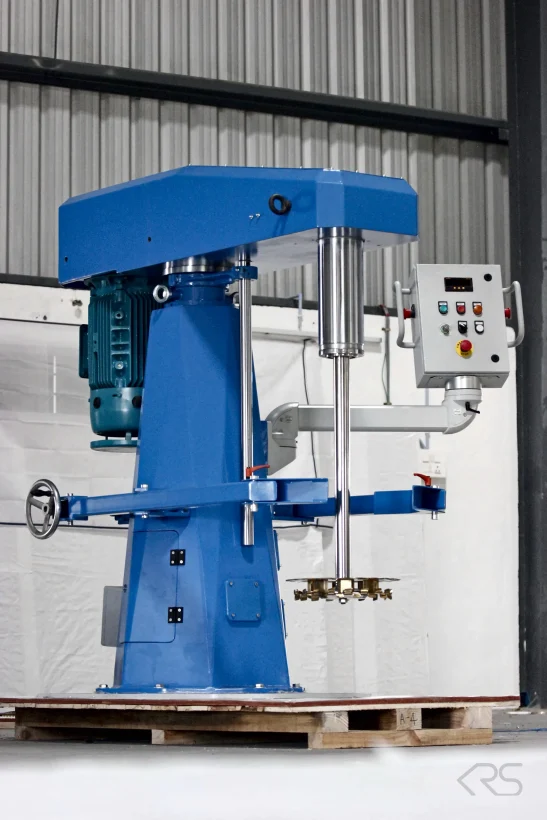

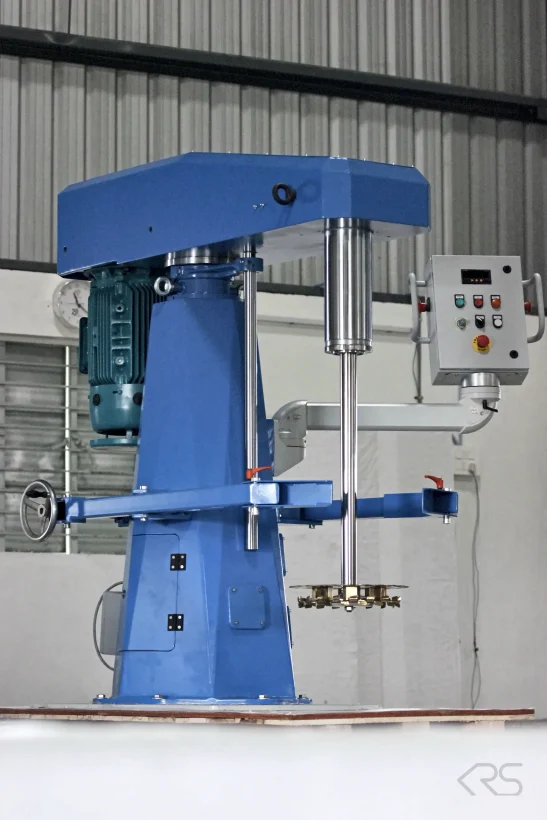

A KRS high speed disperser is built around a drive head carried on a fabricated steel column. The motor drives a vertical shaft with a toothed disperser disc at its end, and the head moves up and down on the column to lower the disc into the vessel and lift it out for cleaning and vessel change. A clamping arm holds the vessel in place, and a control panel at the machine controls the drive.

  • Fabricated steel column and drive headFabricated and assembled in the KRS workshop
  • Vertical shaft with toothed disperser discThe disc size and shaft length are matched to the vessel
  • Height-adjustable drive headLowers the disc into the vessel and raises it for cleaning and vessel change
  • Vessel clamping armHolds the vessel securely during dispersion
  • Control panel at the machineOperator panel for the drive

CONFIGURATION

Configured to your requirements

We define these points with you for each machine.

  • Vessel and batchVessel size, batch volume and how vessels are handled at the machine
  • Disperser toolDisc diameter, shaft length and tool type for your product
  • Drive and speedMotor and speed control matched to viscosity and process
  • ControlsControl panel and operating concept
  • ExecutionExecution suited to the operating environment of your plant

Technical data. Specifications for your machine are provided with the quotation, based on your product and process requirements.

INDUSTRIES

Paint, ink, coating and chemical applications

Where KRS high speed dispersers are used. See all industrial dispersion applications.

  • Paint

    Pre-dispersion of pigments and fillers in decorative and industrial paints – the classic paint dispersion equipment.

  • Printing ink

    Wetting and pre-dispersing pigments for liquid inks before fine grinding in a bead mill.

  • Coatings

    Incorporating pigments, fillers and additives into protective and industrial coatings.

  • Chemicals

    Mixing and dispersing powders into liquids for chemical formulations and suspensions.

  • Pigments

    Wetting and deagglomeration of pigment powders as the first dispersion stage.

  • Adhesives

    Dispersing fillers and additives into adhesive and sealant systems.

MANUFACTURING & INSTALLATION

Built and installed by KRS

Every machine is engineered, fabricated and assembled by KRS in Coimbatore, India, and KRS engineers support installation and commissioning at the customer site.

Manufacturing and engineering at KRS

  • EngineeringMachine configuration for your product and plant
  • ManufacturingFabrication and assembly in the KRS workshop
  • Installation and commissioningSupport at the customer site
  • Process lineCombine with Bead Mill and Three-Roll Mill

PHOTOS

KRS High Speed Dispersers in the workshop and on site

FAQ

Questions about high speed dispersers

Can’t find your answer? Ask our engineers.

What is a high speed disperser?

A machine with a toothed disc on a fast-rotating vertical shaft that wets, deagglomerates and distributes powders and pigments in a liquid. It is the standard pre-dispersion machine in paint, ink, coating and chemical production.

What is a high speed disperser used for?

For mixing and dispersing solids into liquids: pigments and fillers into paint and coating bases, pigments into inks, and powders into chemical formulations and adhesives.

How does a high speed disperser work?

The rotating disc creates a vortex that pulls the product down onto the disc. High shear at the edge of the teeth breaks up agglomerates, and the circulating flow distributes the solids through the batch.

Is a high speed disperser enough, or do I also need a bead mill?

That depends on the fineness you need. A disperser wets and pre-disperses; where a finer, more uniform particle size is required, the pre-dispersed product goes on to a high energy bead mill.

How do I select a high speed disperser?

The main factors are batch volume and vessel size, the viscosity and solids content of the product, the required dispersion result and the operating environment of your plant. KRS configures the machine around these points.

What information is required for a disperser quotation?

Your product and application, viscosity and solids content, batch size and vessel dimensions, the target dispersion result and any requirements of the operating environment.

Where is KRS located?

KRS DISPERMAHLTECHNIK is based in Coimbatore, Tamil Nadu, India. Enquiries from India and abroad are welcome.

Request a quote for High Speed Dispersers

Tell us about your product, batch size and target result.
